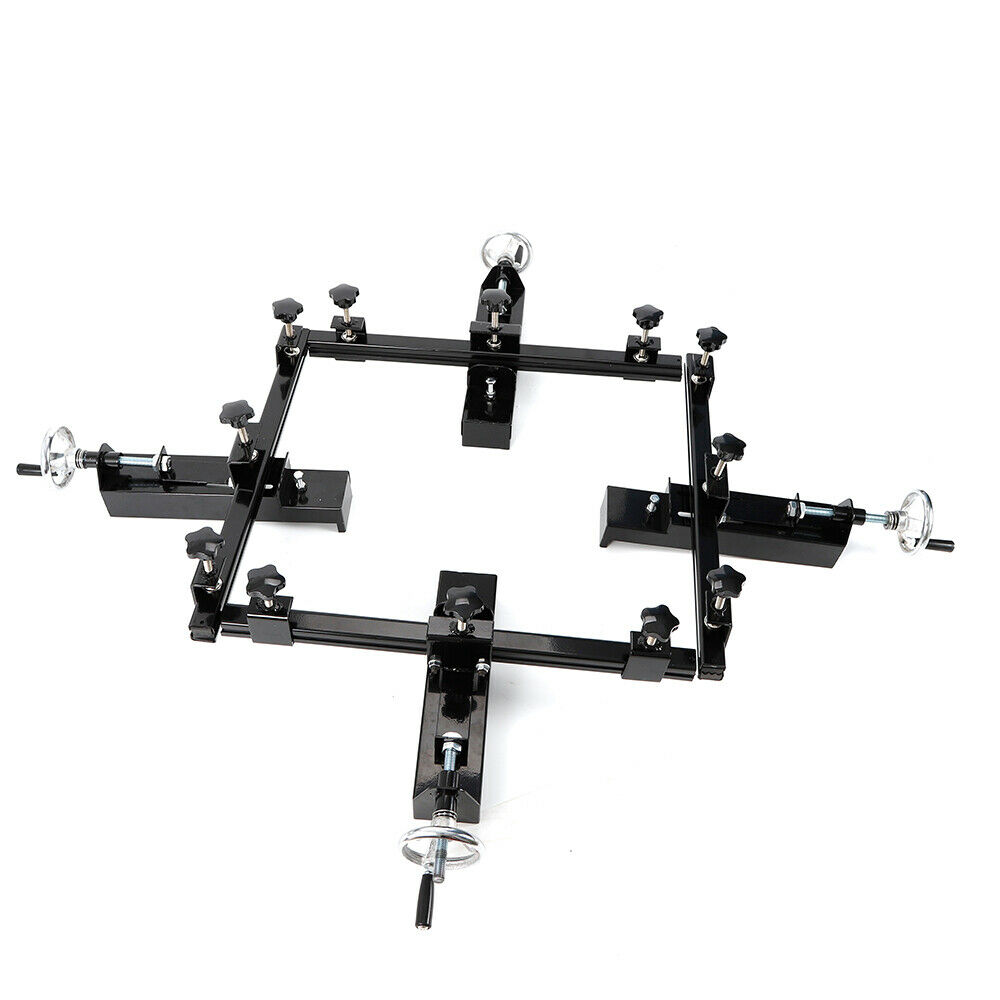

24 Inch X 24inch Hand Screen Stretcher for Silk Screen Printing Hanze MSR 04

  • Applicable Industries: Garment Shops, Manufacturing Plant, Retail, Printing Shops
  • After Warranty Service: NO SERVICE
  • Local Service Location: Sri Lanka
  • Showroom Location: Sri Lanka
  • Condition: New
  • Place of Origin: Hebei, China
  • Brand Name: HANZE
  • Dimension(L*W*H): 67 X 53 X 21 cm
  • Weight: 20.00 KGS
  • Warranty: 1 YEAR
  • After-sales Service Provided: Online support
  • Key Selling Points: Easy to operate
  • Product Code: HANZE MSR 04
  • Hs Code: 8447909000
  • Min. Stretching Size: 250 X 250 mm
  • Max. Stretching Size: 600 X 600 mm
  • Machine size: 50*50*10in
  • Max Stretching Tension: 25 N/cm
  • Net Weight: 18.00 kgs
  • Gross Weight: 20.00 kgs
  • Packing Size: 67 X 53 X 21 cm
Product Description
The equipment is used for stretching silk screen during making screen frames,it is small size without taking space,besides,it can stretch the silk screen evenly and flat,so it is the most important ancillary equipment for making screen stencil. This equipment includes 4 gibs in 60cm, which can hold the frame within 60x60cm, the single 60x60cm and two sets can make screen frame within 120cm.
Feature
Easy Frame Size Adjustment Corner Softening Capabilities While Under Tension Compatible with Essentially all Frame Types Stretches Directly from the Bolt of Fabric Utilizes a Wide Locking Bar for Easy Use No Special Training or Tools Required Maintenance-free Design
Specification
Min. stretching area
250 X 250 mm
Max. stretching area
600 X 600 mm
Max. stretching tension
25 N/cm
Package size
67 X 53 X 21 cm
Operations
1. Put the screen frame on it, the upside must be the ragged face.
2. Adjust the height of the frame, 0.04"-0.08"(1-2mm) higher than the baffle.
3. Keeping the hand-wheel in the inside of the screw rod will assure better stretching effects.
4. Coat screen adhesive, not to thin and not to thick.
5. Stretch when the adhesive sticks hand a bit.
6. Coat the adhesive again after well stretched.
7. When the adhesive solidifies completely, then the screen stretching appliance can be dismantled.
